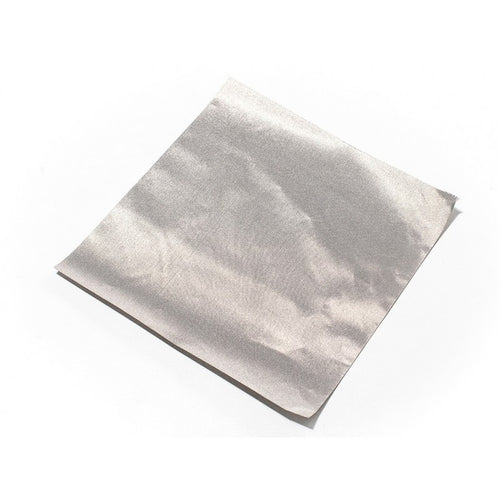

Silver coloured. Made of Copper-Nickel-plated nylon. Use small pieces for soft switches, plush keypads, capacitive touch sensors, and other textile interfaces. This highly conductive fabric has a resistance of less than 1 ohm per foot in any direction across the textile. Great for use with FLORA.
Iron on medium heat, if necessary, steam ok. Dry cleaning is recommended. Discoloration can occur over time.
Specifications:
Weight 80 g/m2
Thickness 0.08mm
Width 1080mm
Fabric density 230T
Product Function:
Shielding Effectiveness 60(min)in 10MHz--3GHz/dB
Salt Spray（5% 48H 35℃） <0.5 Ω/sq
Surface Resistivity ≤0.05Ω/sq
Metal Adhesion over 4 grad
