For Arduino projects.

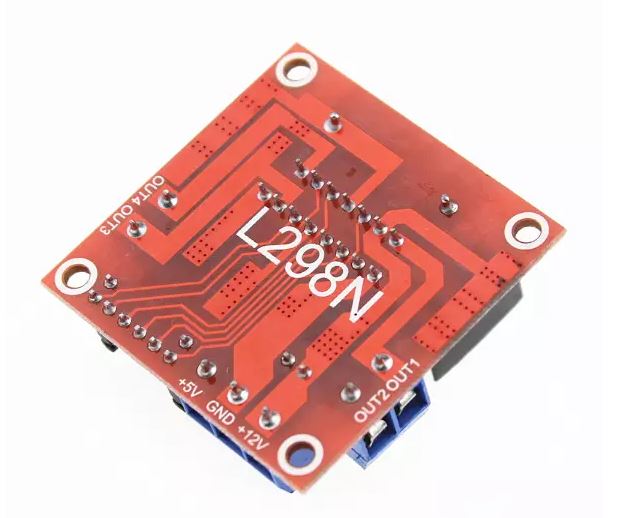

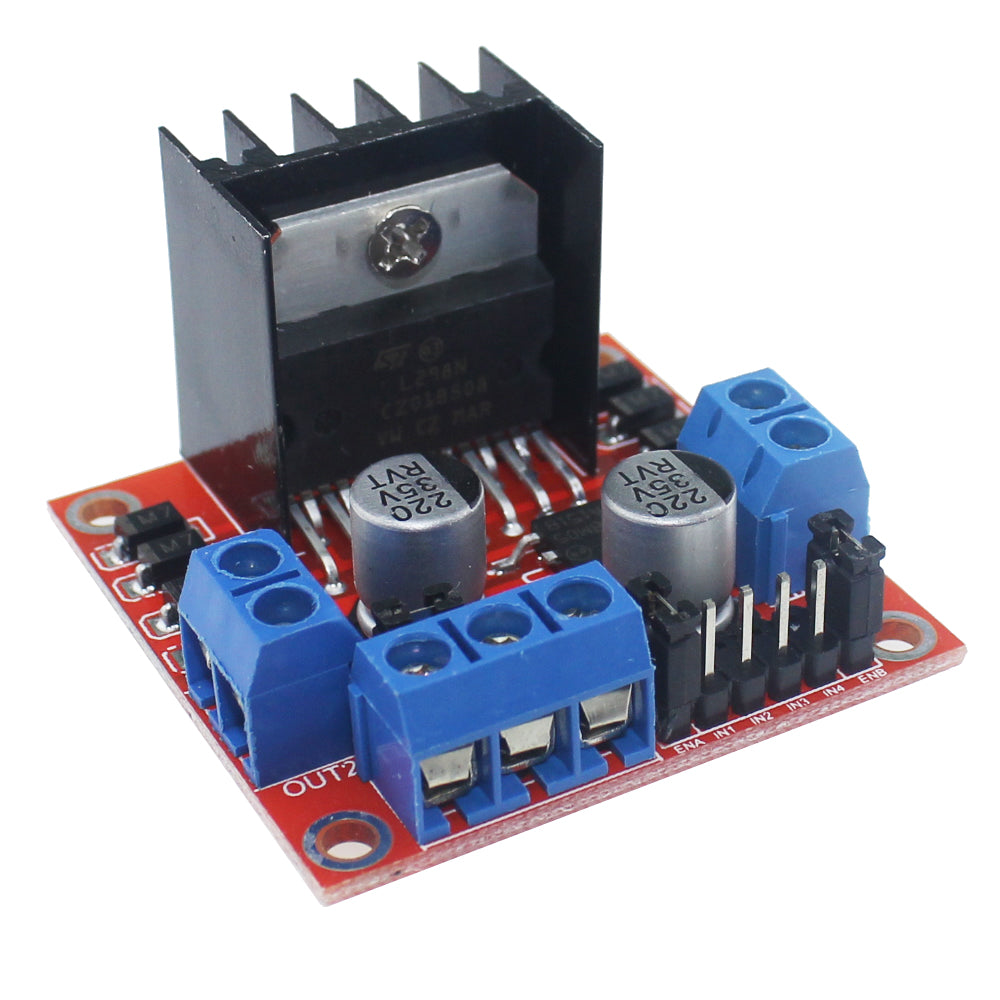

The L298N Motor Driver Module is a high power dual H-bridge motor driver module. It was designed for driving inductive loads such as relays, solenoids, DC and Stepper Motors. It is capable of driving 2 DC motors or 1 stepper motor (you can drive two DC motors with your board, controlling the speed and direction of each one independently).
The L298N Motor Driver Module - Features & Specifications:
• Operating Voltage 5V to 12V
• Motor Supply Current (Maximum): 2A
• Logic Voltage: 5V
• Driver Voltage: 5-35V
• Driver maximum current 2A per bridge (channel) or 4A max (with external power supply)
• Current sensing 1.65V/A
• Maximum Power (W): 25W

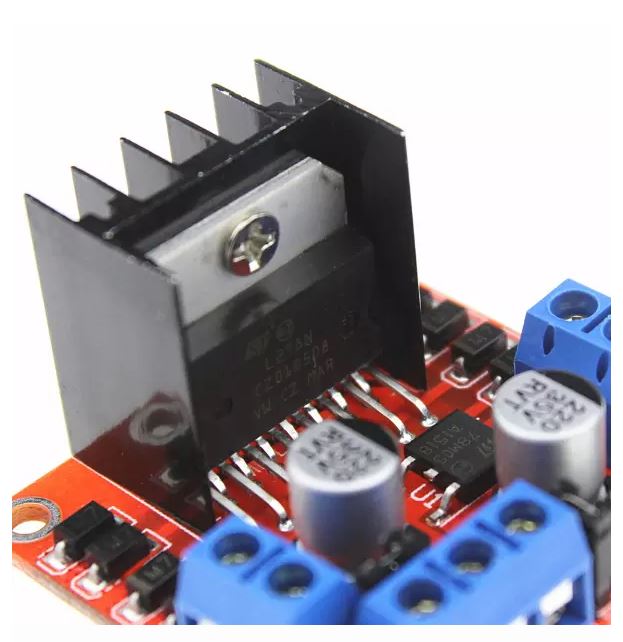

• Heatsink for better performance
